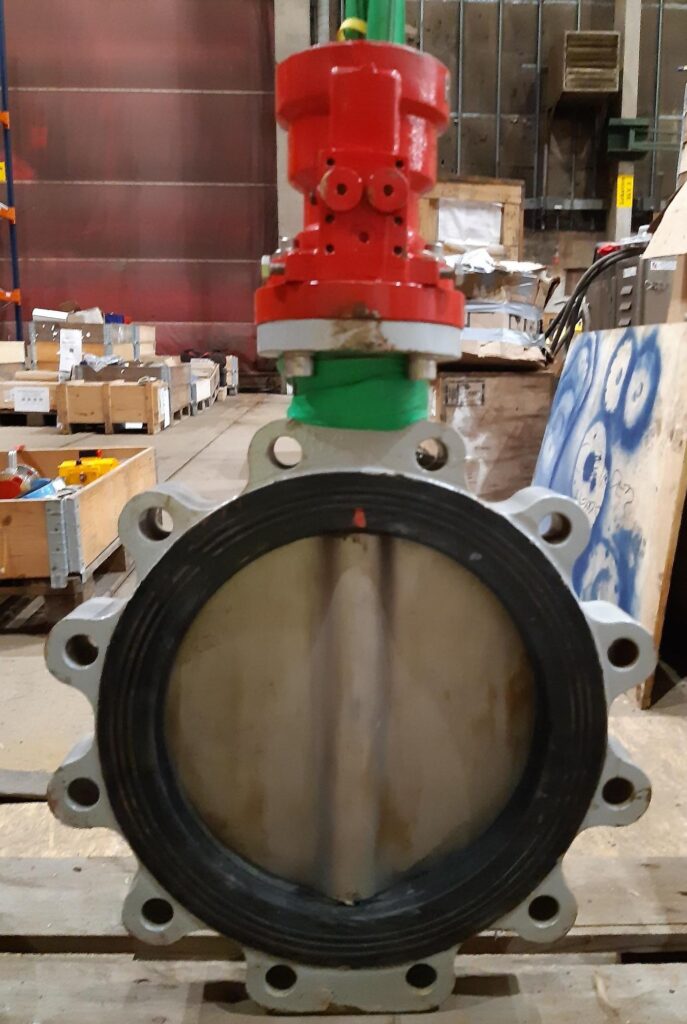

Hydraulic Actuated Butterfly Valve
Description:

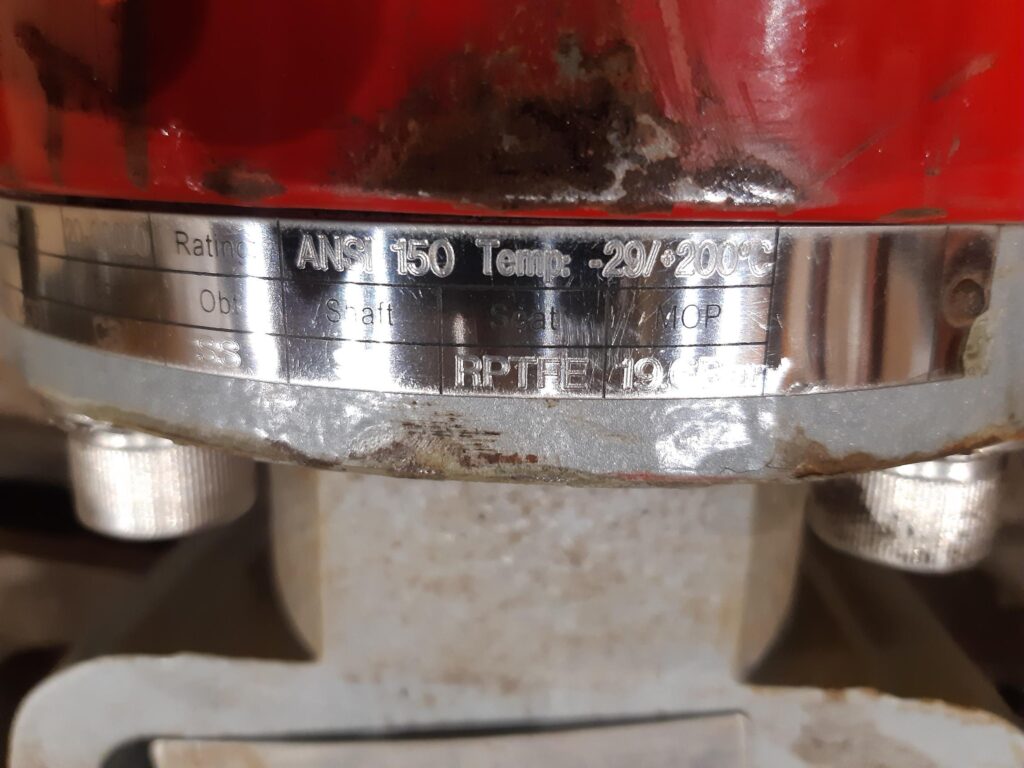

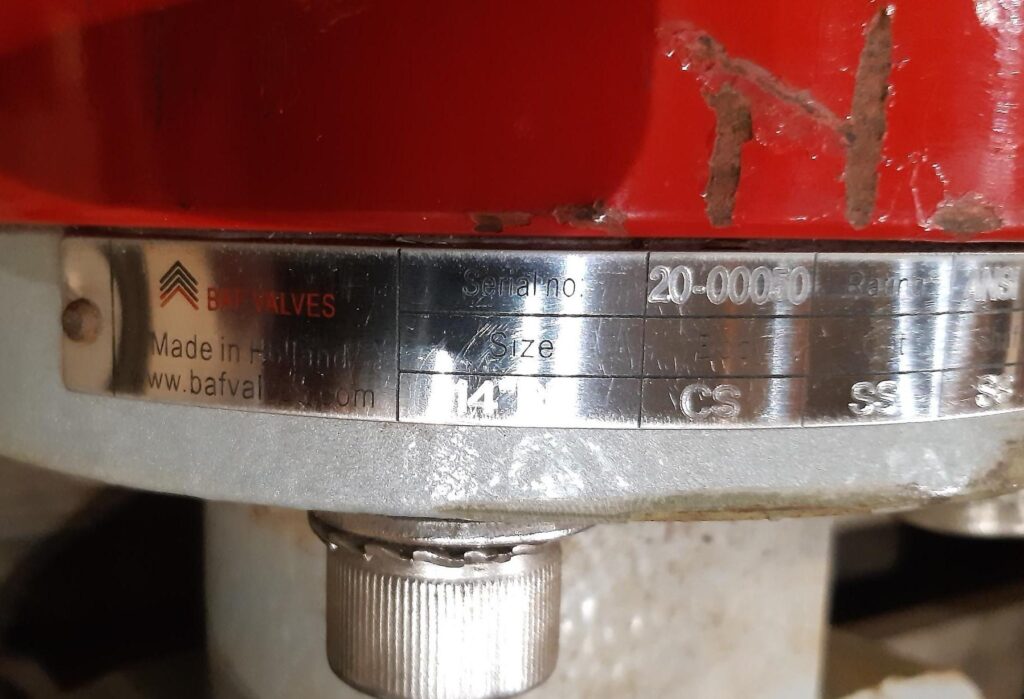

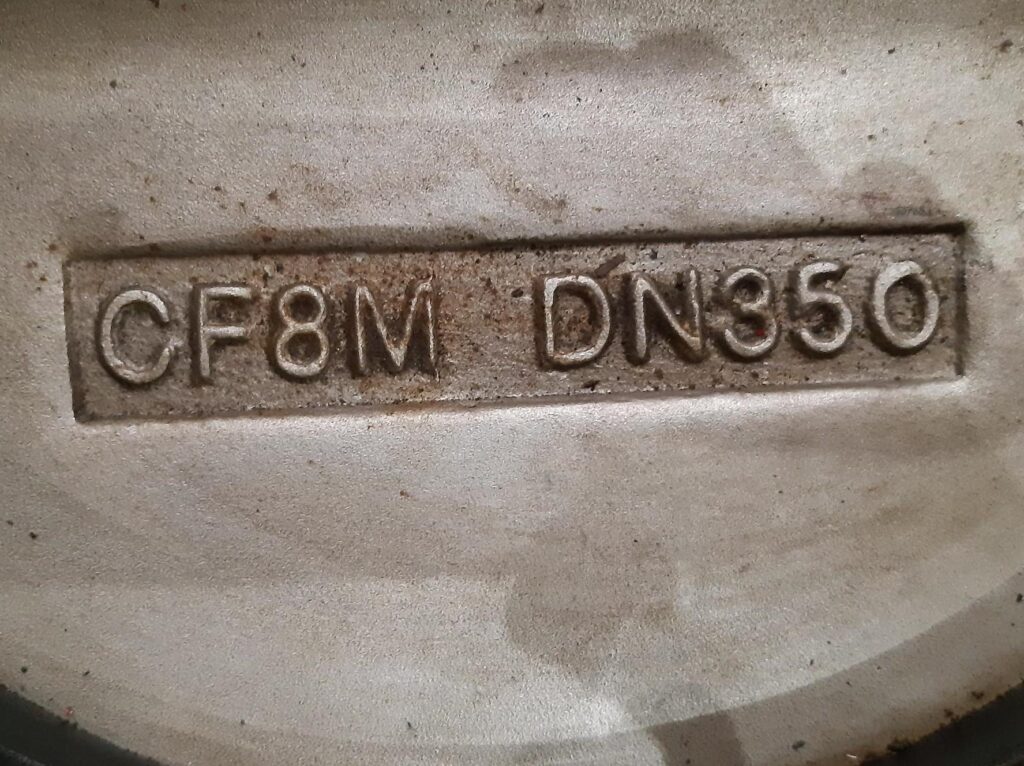

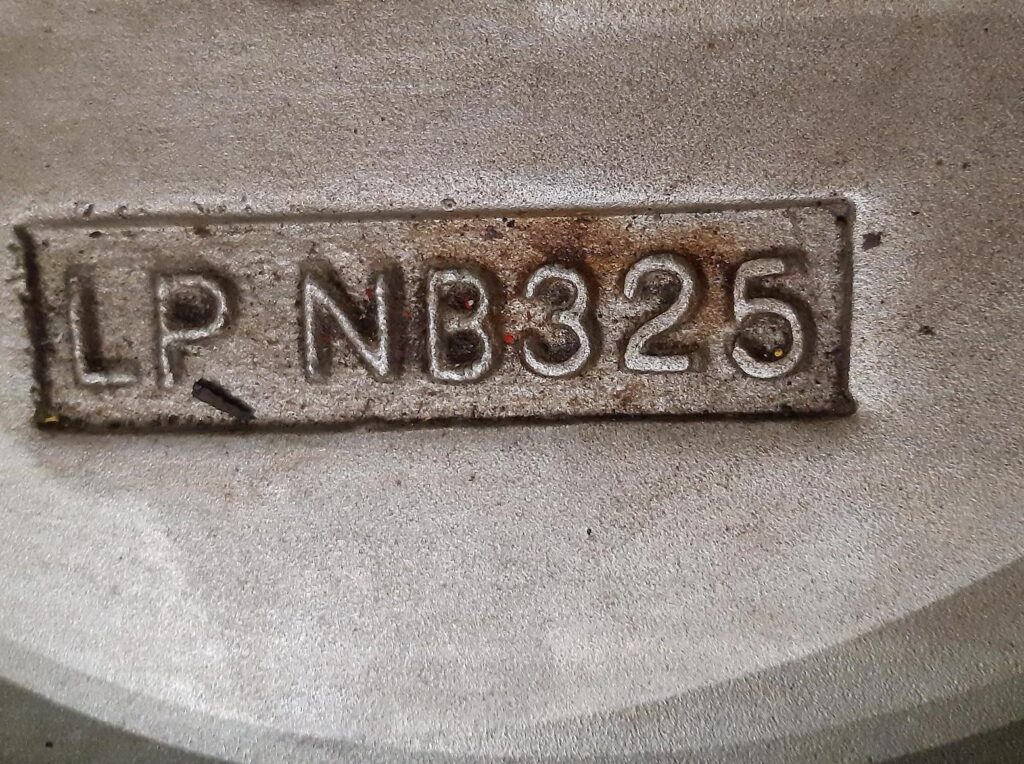

Valve: Size 14”RL, DN350, CF8M, LP-NB325, Rating: ANSI: 150, Temp: -29/+200ºC,
Body: CS, OBT: SS, Shaft: SS, Seat: RPTFE, MOP: 19,6 Bar

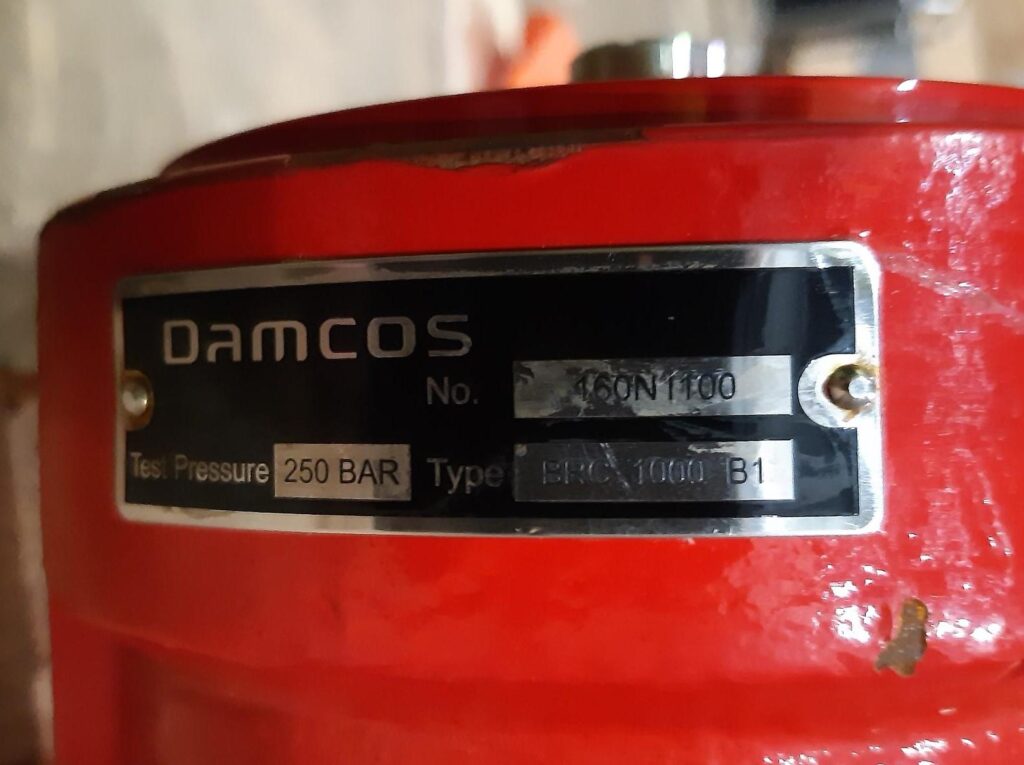

Actuator: Type Brc 1000 B1, Hydraulic Double-Acting Balanced Rotary Actuator 90o (Quarter-Turn) Test Pressure 250Bar
External ID: 2936015
Category: Valves
Subcategory: Butterfly Valve
Manufacturer: Baf Valves/Damcos
Model: Butterfly Valve, Rotary Actuator
Serial No: 20-00052/160N1100
Part No: —
Year: —
Weight [kg]: 75
Dimension (L x B x H) [m]: 0,84x0,54x0,20
Condition: New
Tag No: —
